Welcome to custom chocolate mold diy part 2 — the episode where we mix the silicone, build the acetate box, pour it over our blank, cure it for 24 hours, and test the finished mold with infused cannabis chocolate. If you have not printed and sealed your blank yet, start with Custom Chocolate Mold DIY Part 1 before continuing here.
Custom Chocolate Mold DIY Part 2: What You Need
Before starting this custom chocolate mold diy part 2 build, gather the following materials:
- Acetate transparency sheets (medium gauge — thinner is easier to score and snap)
- T-square or L-square for scoring straight lines
- Hot glue gun and glue sticks
- Smooth-On SmoothSil 940 (two-part food-grade platinum silicone)
- Digital kitchen scale accurate to 1 g
- Plastic mixing cup and stir stick
- X-Acto knife with a fresh blade
- Paper towels and latex gloves
3D Printed Custom Chocolate Mold: Building the Acetate Box
The first step in making any 3d printed custom chocolate mold is building the containment box around your blank. Acetate sheets are ideal — they are food-safe, easy to score and snap, and the hot glue releases cleanly after curing. Here is the process:
- Place your sealed blank on a flat base piece of acetate. Mark a border 1–2 cm around each side — close enough to minimize wasted silicone, but wide enough to fit the wall pieces with glue.
- Score the wall pieces using your T-square. Run the scoring tool along the same line multiple times until the plastic is nearly cut through, then snap it over a table edge.
- Use a hot glue gun to assemble the four walls around the blank. Make sure the blank is glued flat to the base — any gap underneath will let silicone seep through.
- Let the glue fully set before pouring.
How to Make Chocolate Molds: Mixing SmoothSil 940
Here is how to make chocolate molds using SmoothSil 940. This platinum-cure silicone is food-grade rated — essential if you are making molds for anything you will eat. Never use tin-cure or non-food-grade silicone for edible projects.
SmoothSil 940 mixes at a 10:1 ratio by weight (100 parts Part A to 10 parts Part B). Use the free Smooth-On online calculator to determine how much you need — enter your mold box dimensions and blank size and it gives you the exact weight. For a 10×5 cm bar blank with standard box clearance, expect around 300 g Part A and 30 g Part B.
Weigh Part A into a plastic cup using a digital scale tared to zero. Add Part B separately, then mix thoroughly until the colour is completely uniform — no streaks. Part A is stiff and thick; keep mixing longer than you think you need to. Under-mixing will leave your silicone sticky or uncured in patches.
How to Make Custom Molds for Edibles: 3 Pouring Tips
Knowing how to make custom molds for edibles means getting the pour right. Air bubbles in the surface of the mold transfer directly to your chocolate. These 3 tips eliminate most of them:
- Pour from height. Raise the cup and let the silicone fall in a slow, thin stream into one corner of the box. The fall stretches and breaks bubble clusters before they get trapped in the mold surface.
- Avoid pouring directly onto the blank. Let the silicone rise up around and over the blank naturally from the corner — this fills all recessed detail without trapping air.
- Bounce the mold box. Once poured, pick up the mold and drop it firmly onto the table several times. Bubbles will rise and pop at the surface. Leave undisturbed at room temperature for the full 24-hour cure — do not freeze.
Homemade Edible Molds: Unmolding and Testing with Chocolate

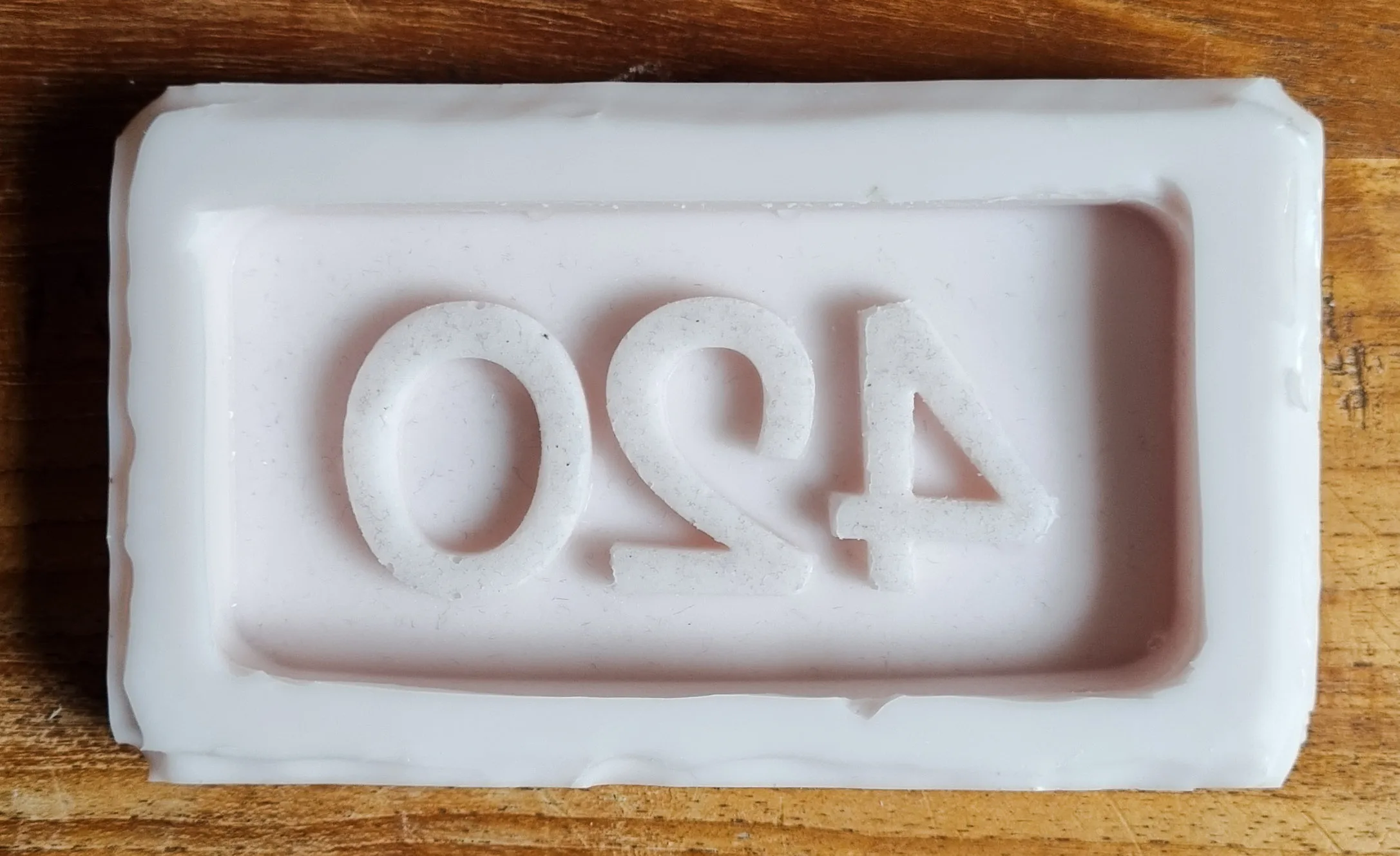

After 24 hours, your homemade edible molds are ready to open. Pull back the acetate walls — the hot glue releases without needing tools. Trim any silicone overflow from the edges with a fresh X-Acto blade. Then gently peel and flex the silicone off the blank, working slowly around the detail areas.
To test your homemade edible molds with infused chocolate: melt candy melts or chocolate chips in a double boiler, stir in a measured amount of cannabis-infused coconut oil, and pour into the cavity. Refrigerate until fully set, then flex the mold to release. The finished bar should have clean detail from the blank. If there is minor surface tearing it is usually from unmolding too early — room-temperature curing gives the best release.
Frequently Asked Questions
What silicone is safe for a custom chocolate mold diy part 2 project?
Use a platinum-cure silicone with a food-safe rating. Smooth-On SmoothSil 940 and Mold Star 15 Slow are reliable choices. Tin-cure silicones are not food safe and should never be used for edible molds.
How long does SmoothSil 940 take to cure?
24 hours at room temperature. Putting it in the freezer to speed up curing causes the mold to tear when removed early — room-temperature curing gives a clean, flexible release every time.
Can I reuse the acetate box?
Not easily — the walls typically need to be broken or bent to remove the cured silicone. They are cheap enough to cut a fresh set for each pour. The blank itself is fully reusable for multiple pours.
What can I make with homemade edible molds beyond chocolate?
Homemade edible molds work for gummies, hard candy (corn syrup base), ice, butter, and any other pourable food product. The same 3d printed custom chocolate mold blank can be used to produce any of these — just swap the fill material.
